The Core Working Principle of Two-Roll Mill for Rubber and Plastic Processing

In the field of rubber and plastic processing, the open two-roll mill serves as the foundational equipment for material preparation. What distinguishes high-performance two-roll mills is not merely solid mechanical construction, but the precise working principle behind operation.

The Principle in Action: Shear, Squeeze, and Control

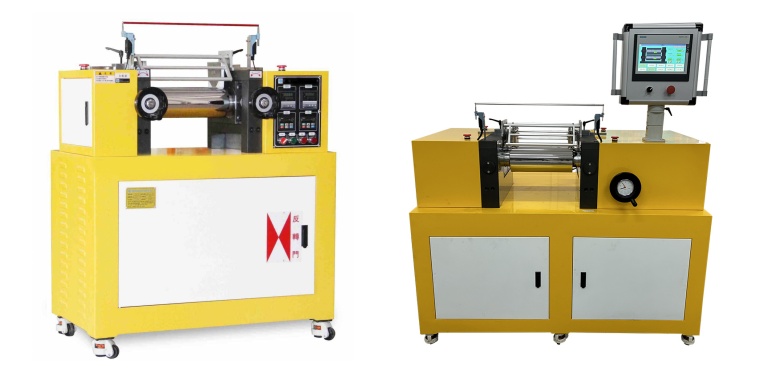

The core component of our two-roll mill consists of two parallel, counter-rotating rollers. The two rollers run at different speeds. Equipped with a precisely calibrated friction ratio (typically ranging from 1:1.2 to 1:1.5), differential rotation generates strong shearing force inside the roller nip gap. This fundamental force breaks filler agglomerates and realizes uniform compound mixing.

The processing procedure relies on coordinated physical effects as follows:

Differential Shearing - The Key to Dispersion

The speed difference between front and rear rollers creates powerful shear stress on materials passing through the adjustable nip gap. This effect stretches polymer molecular chains and breaks up filler agglomerates such as carbon black, enabling full dispersion inside the compound.

Intensive Squeezing and Kneading

Raw materials are fed into the roller clearance and drawn inward by surface friction. Materials are subjected to heavy compression and deformation within the nip. Combined with precise temperature control, mechanical energy softens and plasticizes polymers to achieve even blending with various additives.

Precision Temperature Management

Each roller adopts a hollow structure for circulating steam or cooling water. This dual-purpose temperature control system guarantees stable processing conditions. Heat generated by continuous shear friction can be regulated accurately to maintain the optimal processing range, effectively avoiding polymer degradation caused by overheating and securing ideal material plasticity.

Assisted Turnover for Absolute Uniformity

During mixing, operators can perform manual or automatic cutting and folding of the material sheet. Standard operations including material cutting and triangular folding allow all materials to repeatedly pass through the high-shear nip zone. It eliminates mixing dead zones and delivers fully homogeneous finished compound.

Key Parameters That Define Excellence

The stable performance of a two-roll mill depends on controllable core variables. Our equipment supports accurate adjustment of critical parameters:

1. Roll Temperature: Temperature directly affects material softness and plasticating efficiency. Our machines maintain stable temperature zones customized for different materials (e.g., 140–160°C for polyethylene, 165–180°C for polypropylene).
2. Nip Gap Adjustment: Gap width determines shear strength. A narrower nip gap improves filler dispersion, while reasonable parameter setting prevents over-shearing damage to polymer matrix.
3. Friction Ratio (Speed Differential): A higher friction ratio enhances shear performance for better dispersion. Meanwhile, parameters shall be properly controlled to restrain excessive temperature rise.
4. Batch Size and Material Handling: Optimized roller geometry supports matched batch capacity. Standard operating procedures featuring repeated material turnover and folding maximize mixing efficiency.
